Injury Measures:
Measures taken from the head, neck, and chest indicate low risk of injuries to these body regions in a crash of this severity. Forces on the right tibia indicate that injuries to the lower leg would be possible. Head acceleration from the roof rail hit was low.

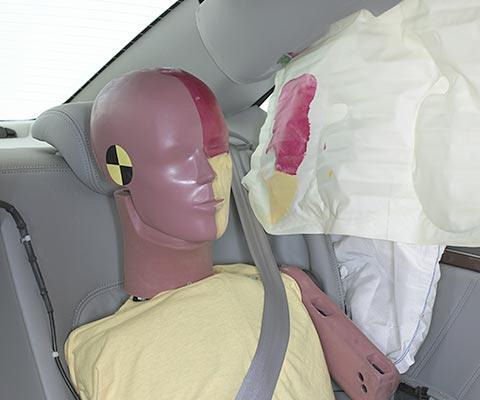

Restraints / Dummy Kinematics:
Dummy movement was well controlled. During rebound, the dummy's head hit the roof rail.

Driver Injury Measures:
Measures taken from the dummy indicate that a fracture of the pelvis would be likely in a crash of this severity. Rib fractures would also be possible.

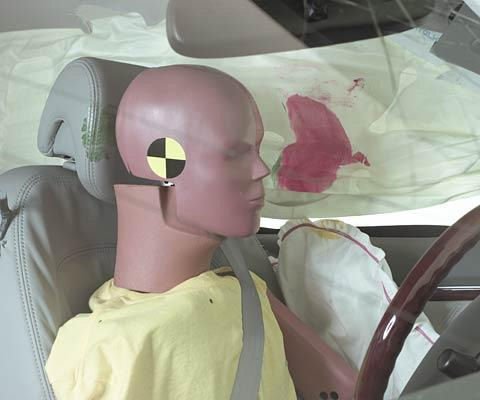

Driver Head Protection:

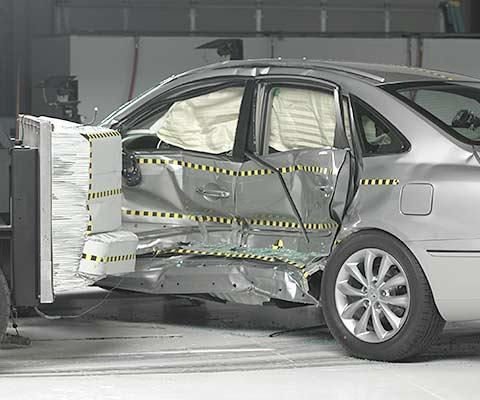

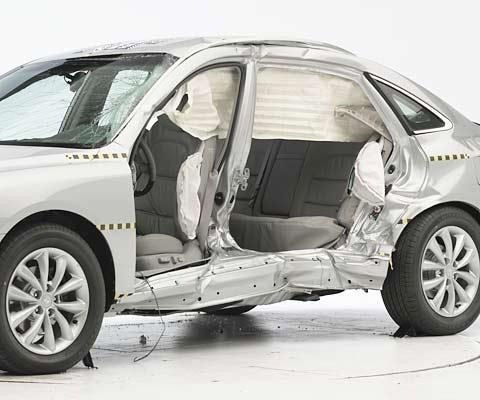

The dummy's head was protected from being hit by any hard structures, including the intruding barrier, by a side curtain airbag that deployed from the roof and a side airbag that deployed from the seat.

Passenger Injury Measures:
Measures taken from the dummy indicate a low risk of any significant injuries in a crash of this severity.

Passenger Head Protection:
The dummy's head was protected from being hit by any hard structures, including the intruding barrier, by a side curtain airbag that deployed from the roof and a side airbag that deployed from the seat.
